Replacement cable for Orange OE-37 Hall Effect Two Channel Magnetic Encoder


      Ask for latest offers/availability : https://bit.ly/2VXQMas

  1. Model: OE-37
  2. Connector Type: JST XH
  3. Connector: Female
  4. Pin/Wire: 6
  5. Cable thickness: 26AWG
  6. Cable Length: 30 cm

59.00 99.00

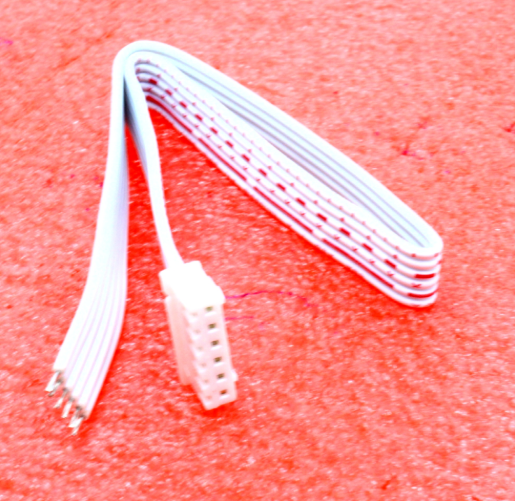

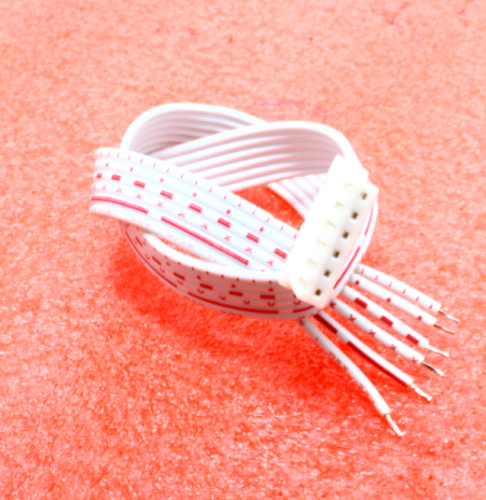

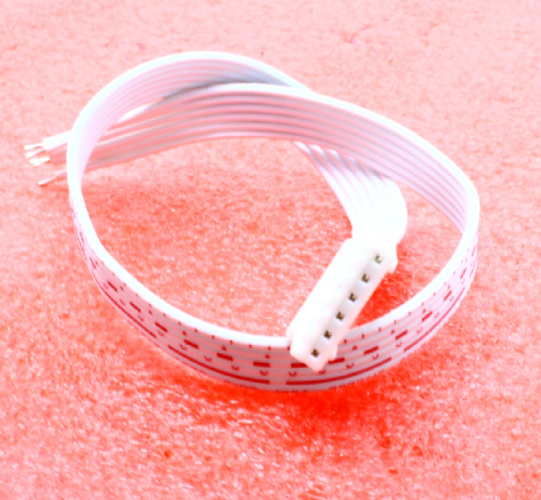

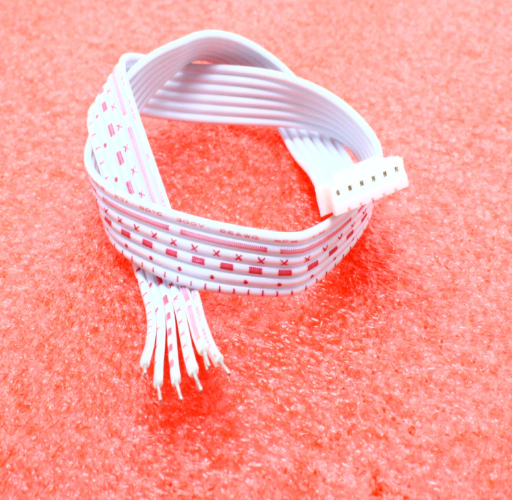

The design of this replacement cable is such that it gives solid locking and Accurate required current ratings for the precise output of the encoder. Replacement cable for Orange OE-37 Hall Effect Two Channel Magnetic Encoder (30 cm) has a 6 Pin JST XH female connector. The connector has 1.5mm of space between pins.

The Cable comes with high-quality 26AWG ribbon Wire which is connected to the female connector without using solder at one end and has open tinned ends at another end. The whole cable is 30 cm long for your convenience to use it in your projects.

The possible connection of Replacement cable for Orange OE-37 Hall Effect Two Channel Magnetic Encoder can be with 6 pin JST HX Male connector soldered on Encoder PCB.

Note: Package does not include any male connector.

We have a wide range of Encoder available at robu.in, do not forget to check them at below link

Rotary Encoders


Specifications and Features :

  1. Connector type: 6 pin JST HX (Female)
  2. Cable Thickness: 26AWG wire.
  3. Cable Length: 28 cm
  4. Cable Colour: White
  5. The cable is purposefully made long for ease in connections.
  6. JST XH is a very common connector, making it more convenient for connecting with other peripherals.
  7. Very flexible design.

Package Includes :

1 x Replacement cable for Orange OE-37 Hall Effect Two Channel Magnetic Encoder
