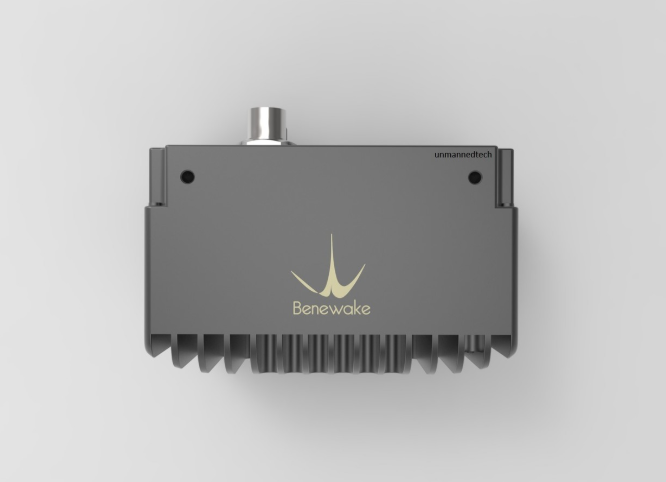

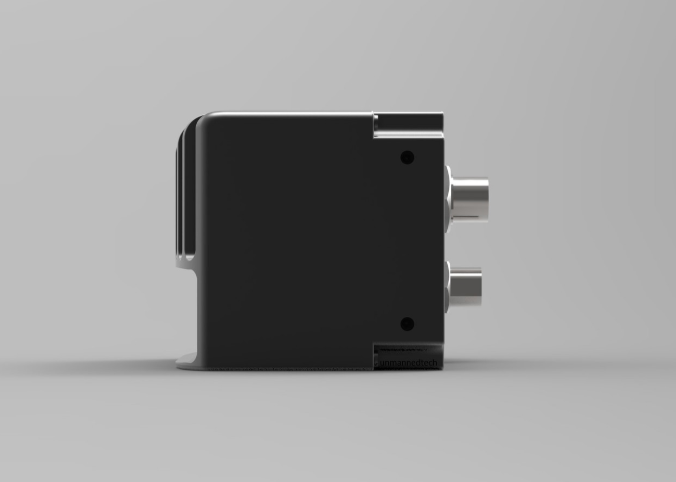

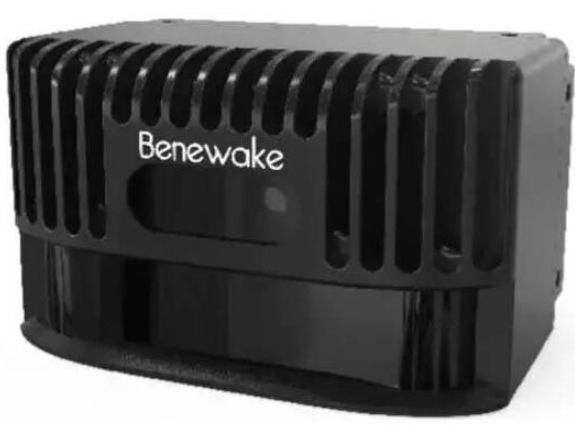

CE30-A Solid State 3D LIDAR Wide FOV Obstacle Avoidance Version.


Compare

Ask For Availability :- https://bit.ly/2JXNOxy

  1. Model: CE30-A
  2. Detecting Range:0.1~4m
  3. Pixel Resolution:320 x 24
  4. Ranging Resolution:1cm
  5. Repeatability:≤3cm
  6. Accuracy:≤5cm

64,900.00 70,000.00 incl. GST

CE30-A Solid State 3D LIDAR Wide FOV LiDAR Sensor is a solid-state infrared LiDAR which is developed based on the ToF principle. Equipped with its special hardware design, it could complete the measurement of wide horizontal FOV and output the grey and depth information at the same time.

With its specially optimized obstacle avoidance mode, the detecting area of interest could be set; and the single-point projection distance information of the nearest distance point could be transfer through CANBUS. Compare with single-line scanning LiDAR, CE30-A does not contain any rotating compartments, which could ensure the reliability of the long-time work and a wider vertical detecting range.

Mechanical single channel LiDAR is pretty common in our life, but two problems cannot be neglected, i.e. short lifespan and high price due to the rotating measurement mode.
Benewake launches CE30, a solid-state LiDAR with large FoV. It could simultaneously output grey and depth information within 132° horizontal FoV and 9° vertical FoV. Meanwhile, no mechanical rotating components exist internally, so higher reliability and stability could be ensured.
Based on the optimized obstacle avoidance mode, the region of interest (ROI) can be customized to focus on the obstacle information in the ROI and enable unimpeded driving. It can be applied in the general vehicle field, including Automated Guided Vehicle (AVG, such as intelligent warehouse vehicle), autopilot cars and industrial automation, etc.

NOTE:- THIS SENSOR IS AVAILABLE FOR PREORDER ONLY, DELIVERY TIME AFTER ORDER WILL BE- 15 TO 20 DAYS.


ce30-solid-state-lidar-size2


Comparison Chart between CE30-A, CE30-C and CE30-D Module:

Comparison Chart between CE30-A and CE30-C Module


Applications:
  1. Robot Obstacle Avoidance
  2. AGV Navigation & Positioning
  3. Short Distance Trigger
  4. People Counting
  5. Gesture Control and Human-Machine Interface
  6. Wheel Ahead Detection / Alert
  7. Real Application Video for Smart Warehouse AGV Obstacle Avoidance



Features:

  1. Low Power Consumption:≤4.5W
  2. Supply Voltage:12V
  3. Communication Protocol:  CAN/TCP
  4. Protection Grade: IP65
  5. Operating Temperature Range: 0~50℃
  6. Photobiological Safety Risk group 0 in accordance with EN 62471

Package Includes:

1 x CE30-A LiDAR Sensor.
1 x Power supply cable.
1x CAN BUS Connector.
