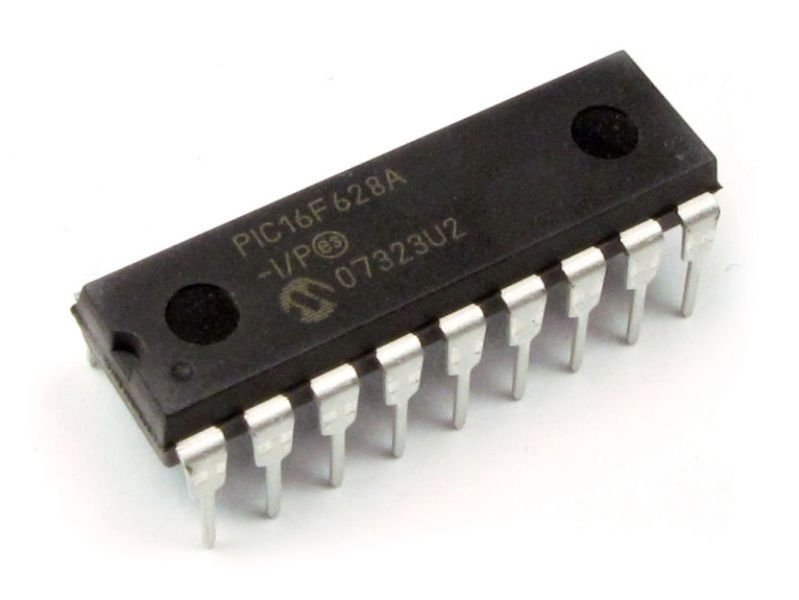

PIC16F628A Microcontroller

  • High-Performance RISC CPU
  • Only 35 single word instructions to learn
  • All instructions are 1µs (@4MHz) except for program branches
  • Operating speed: DC – 20MHz clock input
  • 2 kBytes Flash Program Memory
  • 224 Byte RAM Data Memory
  • 128 Byte EEPROM Data Memory
  • In-circuit serial programming
  • Peripheral Features
  • Universal Synchronous/Asynchronous Receiver/Transmitter (USART)
  • Two 8-bit timer/counter(TMR0,TMR2) with 8-bit programmable prescalar
  • One 16 bit timer/counter
  • High current source/sink for direct LED drive
  • Watchdog Timer (WDT) with separate RC oscillator
  • Two Analog Comparators
  • Capture/Compare PWM (CCP) Module
  • 16 Bytes of common RAM
  • Special Microcontroller Features

97.00 100.00 incl. GST

PIC16F628A – Flash 18-pin 2Kb 20MHz Microcontroller with UART. In-circuit serial programming. Peripheral Features. Universal Synchronous/Asynchronous Receiver/Transmitter (USART).Two 8bit,timer/counter(TMR0,TMR2) with 8-bit programmable prescalar.

  • One 16 bit timer/counter


Package includes :

1 x PIC16F628A Microcontroller


CMOS Technology

Low power, high speed CMOS FLASH technology

Fully Static Design

Low Power Consumption

< 2mA @ 5V, 4MHz

15µA typical @ 3V, 32kHz

< 1µA typical standby current

I/O and Packages

15 I/O pins with individual direction control

18-pin DIP
