Orange 4mm PNP Inductive Proximity Sensor RM12 DC6~36V (Unshielded)


      Ask for latest offers/availability : https://bit.ly/2KobP0B

  1. Operating Voltage (VDC): 6 ~ 36.
  2. Detection Distance (mm): 4.
  3. Outer Thread Size: M12.
  4. Object Type: Inductive.
  5. Output Type: PNP Normally Open Three-line.
  6. Installation Type: Non-Flush (Unshielded).
  7. Max Output Current: 200 mA.
  8. Setting Distance (mm): 0 ~ 2.4.



239.00 399.00 incl. GST

Orange 4mm PNP Inductive Proximity Sensor RM12 DC6~36V (Unshielded) is a brand new inductive proximity sensor that detects a metal object. Non-flush, or unshielded sensors, do not have the shield around the end of the sensor so the field can radiate from the face to the sides of the sensor in a larger pattern.

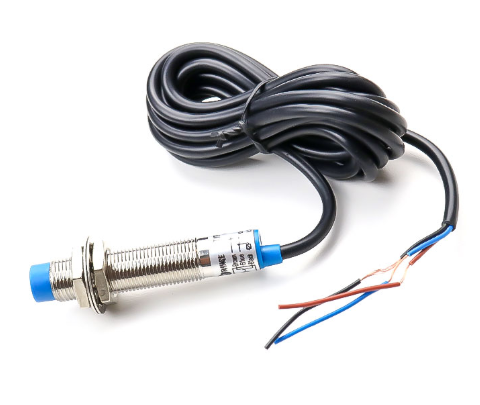

This M12 indicates a cylinder type whose diameter is 12mm and the length of that cylinder is 62mm. The operating voltage range is VDC 6~36V, but the nominal voltage is 30V with detecting distance of 4mm. The sensor has 3 wire NO (Normally open) type output with RED LED indicator.

The Inductive Proximity Sensor application:

  1. Mine metallurgy.
  2. Plastics, textile and Chemical Industry.
  3. Light industry, tobacco, electric power, railway, and war industry.

Features:

  1. IP67 protection structure (IEC standard).
  2. Compact volume.
  3. High precision of repeated location.
  4. Diversified exterior.
  5. Good performance of anti-interference.
  6. Many output forms.
  7. High on-off frequency.
  8. Wide voltage range.
  9. Dustproof, vibration proof, waterproof and oil proof.
  10. With short-circuit protection and inverted connecting protection.
  11. Long service life.

Package Includes:

1 x Orange 4mm PNP Inductive Proximity Sensor RM12 DC6~36V (Unshielded).
