IR Module, IR Sensor, Line Follower, Obstacle Sensor

  • Range : 10-15 cm
  • Input supply voltage: 5V DC
  • Three pin burg male header for ea

79.00 149.00 incl. GST

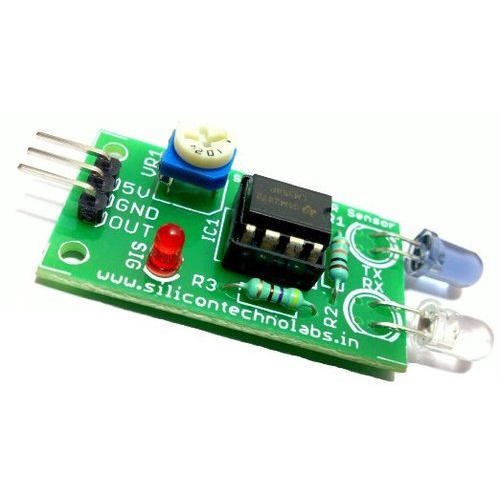

This is a multipurpose infrared sensor which can be used for obstacle sensing, line sensing, etc. and also as an encoder sensor. The sensor provides a digital output (1 or 0). The sensor outputs a logic one (+3.5V)

At the digital output when an object is placed in front of the sensor and logic zero (0V), when there is no object in front of the sensor. An onboard LED is used to indicate the presence of an object.

Package Includes:

  • 1x Ir sensor Module.

10-12cm range. Potentiometer for maximum range setting.

Can be used to differentiate between black and white (Can be used for line sensing)

Onboard LED indication for detection 5) Works on 5V or 3.3V input. TTL compatible output
