E18-D80NK Adjustable High Range Infrared Sensor Switch 3-80cm Advance IR Sensor


       Ask for Latest offer / Availability : https://bit.ly/2TpulL9

  • Sensing range: 3 – 80cm.
  • The output current, output, DC / SCR / Relay Control: 100mA/5V supply
  • Current consumption DC <25mA
  • response time <2ms
  • point angle: more than15 °, the effective distance is adjustable from 3-80 CM
  • the working environment temperature: -25 °C ~ 55 °C
  • the standard detection object: sunlight 10000 LX is the following incandescent 3000LX below

399.00 850.00

The E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range              of 3-80cm.

The Adjustable Infrared Sensor Switch is small, easy to use, inexpensive, easy to assemble and can be widely used in a robot to avoid obstacles, interactive media, industrial assembly lines, and many other occasions.

The switching signal output differs in accordance with the obstacles. It remains high when no obstacles and remains low when there are obstacles. There is a bright light behind the probe to detect the scope of 3cm – 80cm.

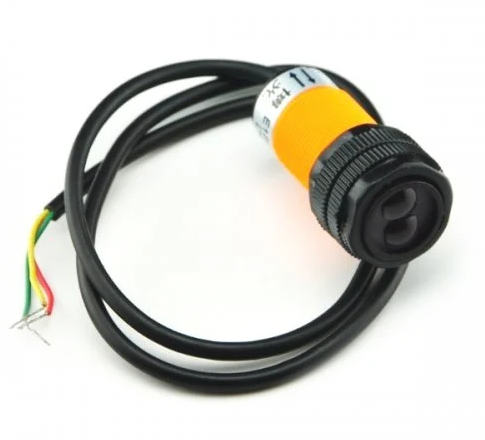

Connection

Red wire: +5V
Green wire: GND
Yellow wire: Digital output

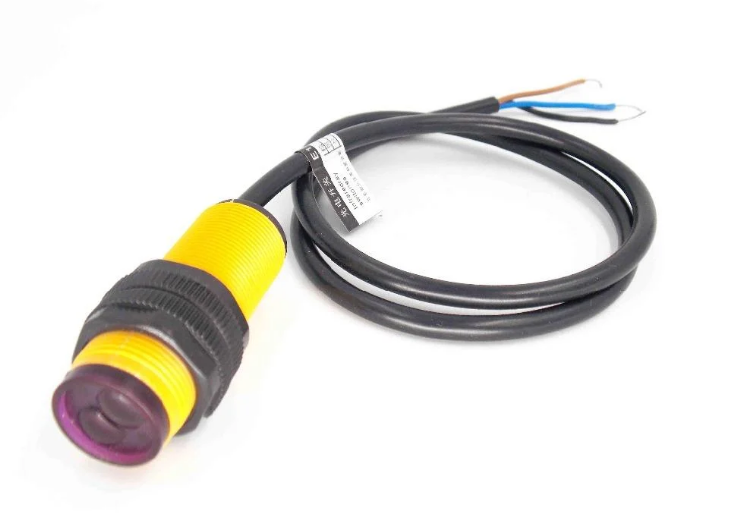

OR

Brown wire: +5V
Blue wire: GND
Black wire: Digital output.


Features :

  1. Diffuse reflective type.
  2. Digital output.
  3. Adjustable detection distance.
  4. Low consumption.
  5. Compact size.

Light source Infrared
Sensing Range 3cm to 80cm
Input Voltage (V) 5
Current Consumption 100mA
Dimensions (Dia.xLength.) mm 17×69
Cable Length 1 Meter
Shipment Weight 0.135 kg
Shipment Dimensions 8 × 7 × 4 cm




Package Includes :

1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm.

Categories: ,
Light source Infrared
Sensing Range 3cm to 80cm
Input Voltage (V) 5
Current Consumption 100mA
Dimensions (Dia.xLength.) mm 17×69
Cable Length 1 Meter
Shipment Weight 0.135 kg
Shipment Dimensions 8 × 7 × 4 cm
