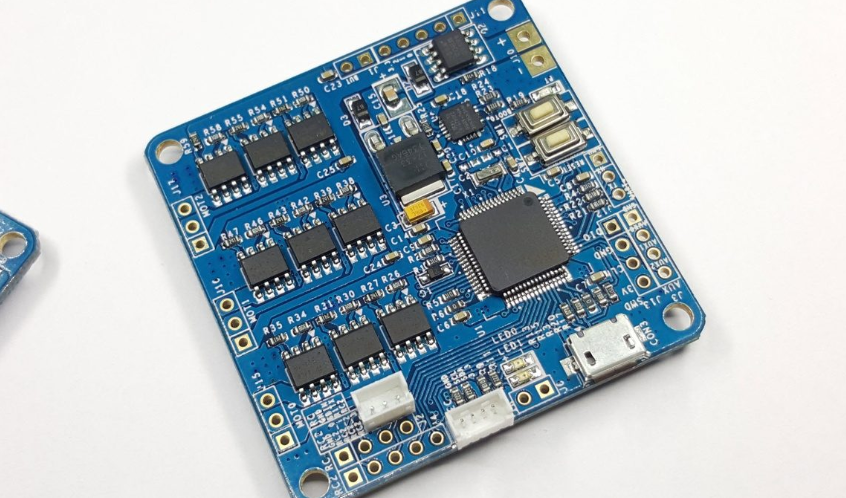

Storm32 Bgc V1.1 3-axis Gimbal Controller Set


Out of stock

   Ask for Latest offers/availability :   https://bit.ly/2YnU1gj

  1. Model: Storm32
  2. Board version: v1.1
  3. Board color: blue
  4. Motor drivers in DFN packages: yes
  5. On-board MPU: yes
  6. Onboard Bluetooth module: no
  7. Supply voltage: 6 – 18 V or 2 – 4S
  8. Motor current: max. 1.5 A per motor

2,089.00 2,599.00 incl. GST

Out of stock

The Storm32 Bgc V1.1 3-axis Gimbal Controller Set is a high-quality DIY brushless gimbal controller that offers unparalleled professional stabilization properties at 32Bit level.

The Storm 32 board also features an integrated HC06 Blue tooth unit which allows you to program the board wirelessly without any cable connections.

The Storm 32 has a 32Bit microprocessor which operates at 72MHz and provides sufficient power to your DIY gimbal assembly. The 32Bit microprocessor and firmware combined provide an incredible range of programming functions.

You can use this module with our 3 Axis Brushless Gimbal to record stunning cinematic video in no time.

The onboard output options provide a multitude of connectivity options including PWM, PPM, IR LEDs, joystick, button, 7 x auxiliary ports which serves as inputs and/or outputs for PWM/Sum-PPM signals. The Storm 32 also supports the connection of a range of satellite receivers including Futaba S-Bus and Spektrum types.

Points to note:
  1. The pins on connector I2C#2 are reversed as with respect to connector I2C
  2. ALL boards HAVE the diode required for running a Bluetooth module!!!

Note: Please don’t flash/Update the Default firmware. Updated or new firmware may cause a problem of connectivity with PC/Laptop.

Package Includes :

1 x STORM32 BGC V1.1 Module.

1 x MPU 6050 MEMS MotionTracking Devices with cable.
