PX4Flow is an optical flow smart camera. It has a native resolution of 752×480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitivity. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.
The PX4FLOW (Optical Flow) Sensor is a specialized high resolution downward pointing camera module and a 3-axis gyro that uses the ground texture and visible features to determine aircraft ground velocity.
- STM32F405, 168 MHz Cortex M4F (GFLOPS 128 + 64 KB RAM)
- 752 x 480 MT9V034 image sensor, L3GD20 3-axis Gyro
- 16 mm M12 lens (IR block filter)
Package Includes :

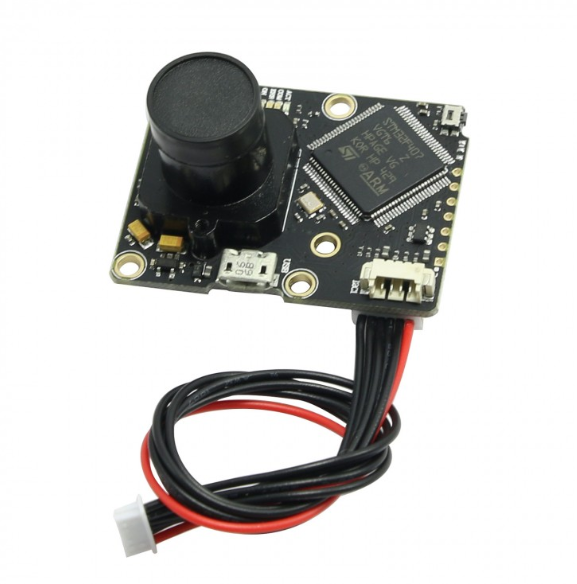

1 x PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera.
1 x Connecting Cable.
