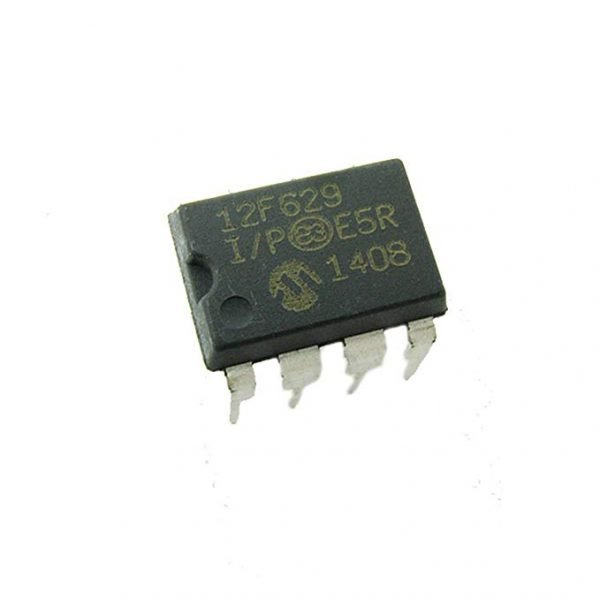

PIC12F629 – Flash 8-pin 1kb 20MHz Microcontroller
Package includes :
1 x PIC12F629 Microcontroller
-4%
Microcontrollers
PIC12F629 Microcontroller
High-Performance RISC CPU
All instructions are single cycle (1µs) except for program branches
Operating speed: DC – 20MHz clock input
Interrupt Capability
8-Level Deep Hardware Stack
Direct, Indirect and Relative Addressing Modes
₹74.00 ₹77.00
- Standby Current: 1 nA @ 2.0V, typical
- Operating Current: 8.5 µA @ 32 kHz, 2.0V, typical, 100 µA @ 1 MHz, 2.0V, typical
- Watchdog Timer Current: 300 nA @ 2.0V, typical
- Timer1 Oscillator current: 4 µA 32 kHz, 2.0V, typical
Based on 0 reviews
Be the first to review “PIC12F629 Microcontroller”
