Momentary Tactile Push Button Module DC 5V Switch


      Ask for latest offers/availability : https://bit.ly/2ZtlQT5

  1. Operating Voltage: 5V
  2. Contact Resistance : 50mΩ max (initial)
  3. Electrically Life:100,000 cycles
  4. Environment temperature: -25°C to +105°C
  5. Operating Force: 180/230(±20gf)
  6. Seal temperature:250ºC-280ºC
  7. I/O pins: 3 pins

49.00 99.00

This Momentary Tactile Push Button Module DC 5V 12V Switch is ideally suited to add a button to your projects and gives a high signal when it is pressed.

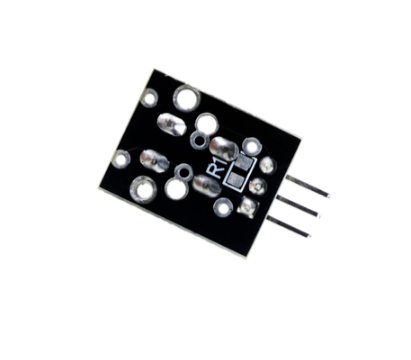

The module of the push button is a fully-fledged device with which you can install it immediately in the project, without using a pull-up or tightening resistances, because this is already in the circuit. The button together with the resistor is located on the board, where there are holes for installation. The built-in resistor has a rating of 10 kΩ.

The module is designed for two contacts: when pressed, they are closed and open when released. There are also 3 outputs on the board: I, S, + 5V. Contact I is connected to the common wire of the circuit, S is the output of the module and + 5V is connected to the power supply.


Package Includes:

1 x Momentary Tactile Push Button Module DC 5V 12V Switch
