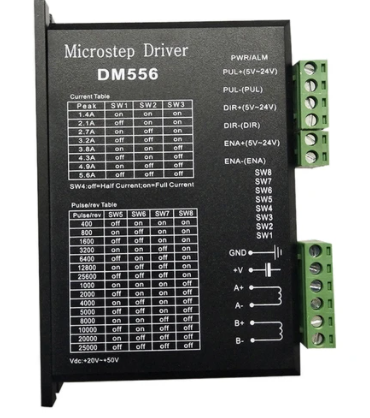

Leadshine DM556 Digital Stepper Motor Driver
Input power 24 ~ 50V DC power supply
Output current 1.0A ~ 5.6A, 8 adjustable, resolution 0.5A.
For 42/57/86 Stepper Motor
Low-speed zero vibration, and noise small
Applications; automatic packaging machines, dispenser, engraving machine and other automation equipment
Drive Function Description
PUL + and PUL- are the positive and negative ends of the control pulse signal; DIR + and DIR- are the positive and negative ends of the directional signal; ENA + and ENA- are the positive and negative ends of the enable signal. 24V need to string 2K resistance
– A + and A- are connected to the positive and negative terminals of the A-phase winding of the motor; B + and B- are connected to the positive and negative terminals of the B-phase winding of the motor. When A, B two-phase winding exchange, the direction of the motor can be reversed.
Package Includes : 1x Leadshine DM556 Digital Stepper Motor Driver
