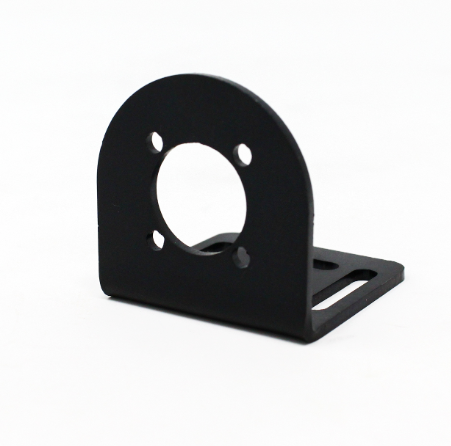

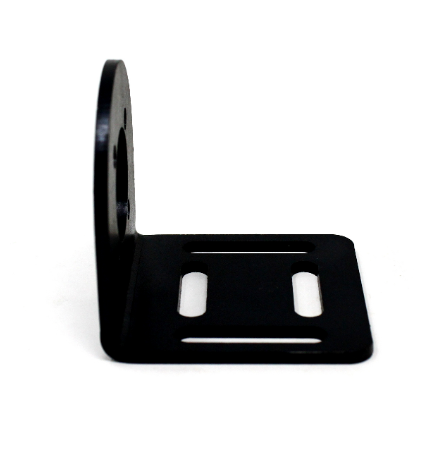

EasyMech Bracket for Orange PG28M395 Series Planetory DC Geared Motor (Bend)


  1. Material: Mild Steel(MS).
  2. Size : 40 x 39 x 40 mm(L x W x H).
  3. Thickness: 2mm
  4. Mounting Holes Size: 3.2 mm
  5. Base holes for Motor Shaft: 17.2 mm.
  6. Motor fitting holes size: 4.2 mm.
  7. Weight: 62 gm.

172.00 290.00 incl. GST

This Mounting Bracket from EasyMech is designed for Orange PG28M395 Series DC Geared Motors to mount it on the chassis/frame firmly and securely. The EasyMech Universal Bracket (BEND) For PG28M395 Planetary DC Geared Motor is made from high-quality Hardened Mild Steel.

The Mounting Bracket is designed by EasyMech with one thing in mind, boosting the speed of our customer’s design process by avoiding regular searches for the quality of mechanical products at an affordable price.

Use of MS in this bracket gives them good strength and makes them sturdy. Hence this EasyMech bracket is ready to hold and take the load of your PG28M395 DC Motor.

Applications :

  1. Numerically controlled machinery.
  2. Factory automation robots.
  3. DC motor position / velocity control.
  4. In Robotics to mount a motor properly and support the motor.

NotePackage includes only bracket. If you want Motor then purchase it separately from Prayog India Click on the links below to open,

Compatible with:

Orange Planetary Gear DC Motor 12V 1081 RPM 0.57 Kg-CM-PG28M395-4.6K

Orange Planetary Gear DC Motor 12V 236 RPM 1.90 Kg-CM PG28M395-21.5K

Orange Planetary Gear DC Motor 12V 40 RPM 8.27Kg-CM PG28M395-126K

Orange Planetary Gear DC Motor 12V 427 RPM 1.27 Kg-CM PG28M395-11.2K


Package Includes :

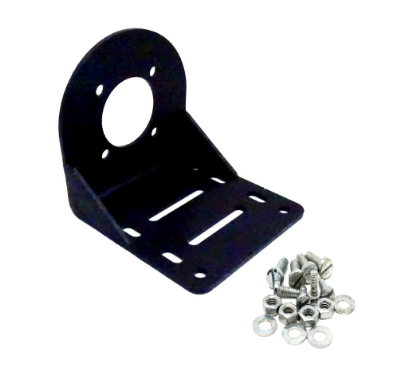

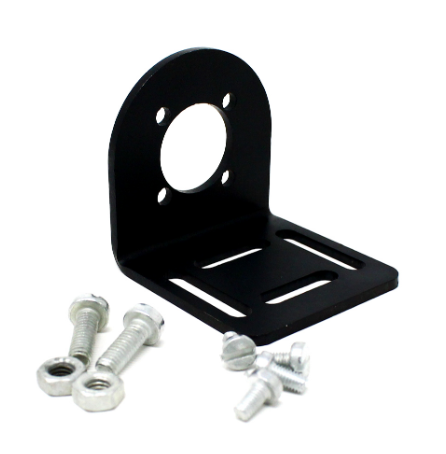

1 x EasyMech Bracket for Orange PG28M395 Series Planetary DC Geared Motor

4 x M3 Bolt for motor Mounting

2 x M4 Bolt and Nut for Bracket Mounting
