MY1016 250WZ2 DIY Electric Bicycle Kit

       Ask for Latest offer / Availability : https://bit.ly/3uTAd0d

  1. Kit of: 24 v 250 w motor
  2. 24 Volt DC Operation
  3. Permanent Magnet DC Motor
  4. Rated Load RPM: 400
  5. No Load Current: <2.2 Amps
  6. Rated Wattage: 250W (0.33 Horsepower)
  7. Torque: 8 N.m (80 kg-cm)
  8. Stall Torque: 40 N.m (400 kg-cm)
  9. Rated Current: 13.4 Amps
  10. Efficiency: 78%
  11. Reduction Ratio: 9.78:1

7,866.00 8,900.00 incl. GST

MY1016 250WZ2 (GB)+ Motor Controller + Twist Throttle + Brake, DIY Electric Bicycle Kit is the complete set of eBike Motor, Motor controller, Twist throttle gear and Brake Lever. This combo made with compatibility with each other so you do not need to put efforts to choose them individually for your project. and it will save your money as well.

This popular reduction motor is simply the most commonly used motor for Scooters, Bikes and quad’s available on the market! It is normally found in the better quality quads and scooters on the market and is classed as a mid-range combination. They are quite powerful for their small size and extremely reliable. We’ve sold these for so many different applications that they were never designed for, but the robustness of the build makes them just go and go and go etc!

The Package includes Motor Controller for MY1016 250W which is compatible with MY1016 250WZ2 (GB) includes attachments for the motor, accelerator, brake, battery, battery charging, brake light, power lock.

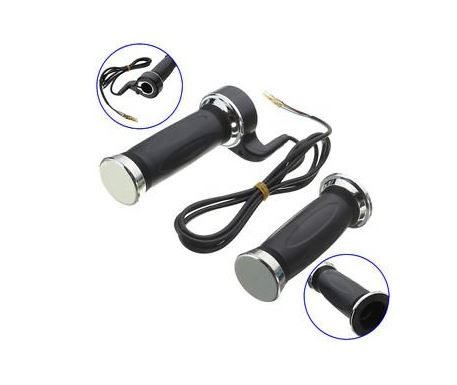

This combo also includes Twist throttle accelerator and left-handed Brake lever required for complete assembly of our DIY Electric bicycle kit.

Features :

  1. Rated Current: 13.4 Amps
  2. Efficiency: 78%
  3. Direct Drive (No Free Spooling)
  4. Suitable for Forwarding and Reverse Operations
  5. 9 Tooth Sprocket for 1/2″ x 1/8″ Pitch Chain

This motor is capable of rotation in either clockwise or counterclockwise by reversing the motor’s power wires.

  1. For Chain Size: Pitch 0.5in;
  2. Roller Diameter 0.3in;
  3. Roller Width 0.16in

Package Includes :

1 x MY1016Z2 250W 24V brush motor.
1 x Motor controller.
1x Throttle and dummy.
1 x Brake.
