EasyMech ID-6mm Motor Coupling Hub (Big)

Ask for Latest offer / Availability : https://bit.ly/37eZJRZ

  1.  Material: Mild Steel.
  2. Outside diameter: 59 mm.
  3. Inside diameter: 6 mm.
  4. Hole PCD: 47.5 mm.
  5. Dia of Holes: 5.2 mm x 6 Nos.
  6. Weight: 120 gm.

465.00 550.00 incl. GST

If you are about to couple Omni, Mecanum or other Heavy Duty wheels with the motor!!! Don’t wait, and get this EasyMech ID-6mm Motor Coupling Hub (Big).

The design is tested for high power robotic application and then made available to our customers. We assure you that this is good to go pack from EasyMech!!!!

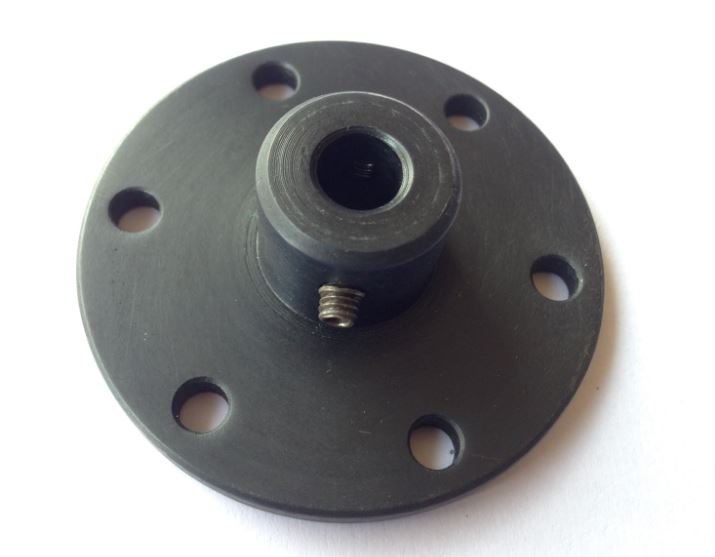

This 6mm Motor Coupling Hub (Big) connects a motor having shaft diameter of 6mm to a wheel which has PCD(pitch circle diameter) of 47.5mm.

They are having a high-quality hardened Mild Steel body which makes them more sturdy and durable than similar size aluminum coupling. Use of MS material makes them much heavy and increases the strength of coupling. These rigid couplings will keep backlash to a minimum since the coupling is one single piece.

The  is a brand of www.prayogindia.in.in which designs, produces and supplies the different type of hubs or couplings, It also accepts the custom design suggestions from the customers starting from low quantity orders.

Compatible Motors having shaft diameter of 6mm,

Cytron IG32E Planetary Gear DC motor

DC Geared Motor with Encoder

Compatible Wheels having PCD of 47.5mm,

All Omni wheels(except 100mm aluminum), Mecanum wheels, Modified HD wheels.

Features :

  1. Quality assured branded couplings.
  2. Equips high-quality MS.
  3. Provides good hold of Motor Shaft.
  4. Ensure safe operation of your robot.

Package Includes :

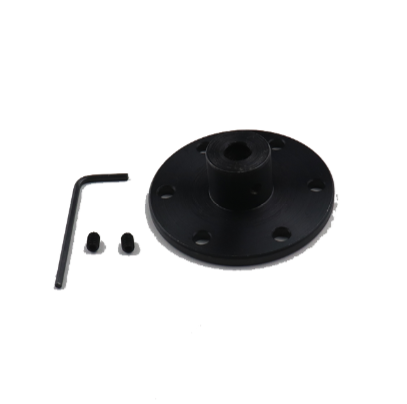

1 x EasyMech ID-6mm Motor Coupling Hub(Big)

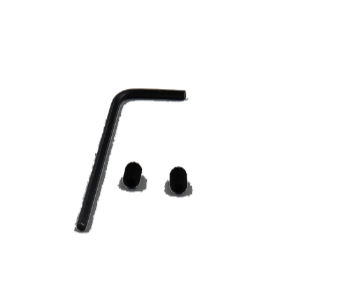

1 x Allen Grub(M4).

15 Days Warranty

This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects.  Reimbursement or replacement will be done against manufacturing defects.

What voids warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
