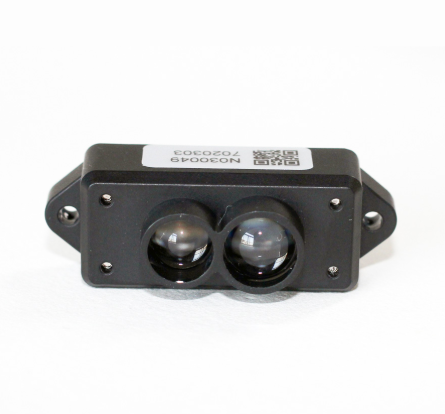

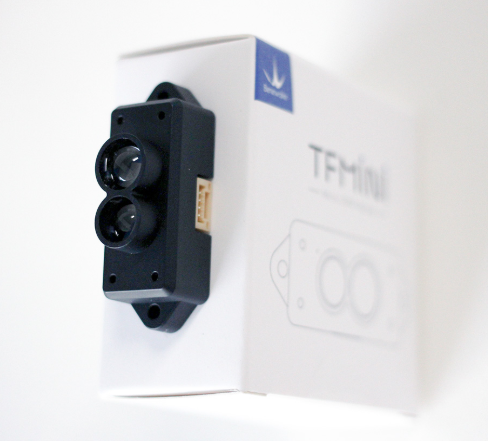

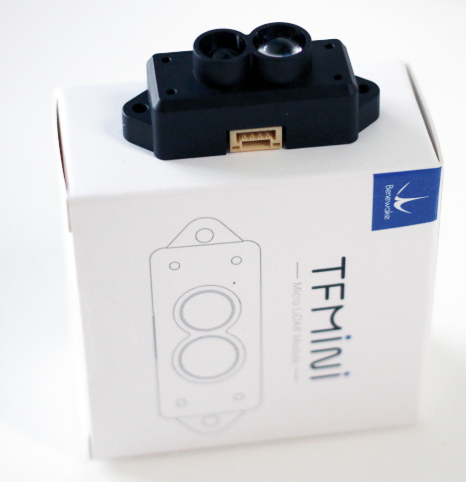

TFMini Micro LiDAR Distance Sensor for Drones UAV UAS Robots (12m)

Ask for Latest offer / Availability : https://bit.ly/2WheUFG

  1. Measurement range : 12 m.
  2. Operating Voltage : 5V.
  3. Power : 0.12w.
  4. Weight : 6 gm.
  5. Precision : cm.
  6. Frequency : 100Hz.

3,149.00 3,800.00 incl. GST

The TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) Laser Range Finder sensor has its unique optical, structural, and electronic designs, the product possesses 3 major advantages, low cost, tiny volume and low power consumption. It has built-in algorithm adapted to indoor and outdoor environments can guarantee an excellent ranging performance at a low cost and in a tiny volume, which highly expands the application fields and scenarios of LiDAR and lays a solid foundation for future “eyes” in the smart era.

TF Mini is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial types of equipment. Main Characteristics of TFMini micro LiDAR distance sensor for drones UAV UAS robots (12m) are, this product is based on TOF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection.

Applications :

  1. Unidirectional ranging LiDAR.
  2. Obstacle avoidance.
  3. Assisted landing.
  4. Terrain following.
  5. Robots outdoor obstacle avoidance.
  6. Intelligent parking. Crane operations.
  7. Vehicle position sensing.
  8. Vehicle detection for barrier gate control.
  9. High-precision & High-speed measurement.
  10. Eye-safe infrared LED light.
  11. Compact size, lightweight.
  12. Good performance for height fixing and terrain following drones.

Application Areas :

Benewake LiDAR application (3)Benewake LiDAR application (4)

Wiring Information :



Sensor comparasion :

Parameter TF01 TF02 TFmini
Ranging 30CM-1000CM
30CM-600CM (Indoor)
30CM-300CM (Outdoor)
Frequency 100Hz 100Hz 100Hz
Precision CM CM CM
Communication Interface UART/CAN UART/CAN UART
Light Sensitivity <100k Lux, Sunlight <100k Lux, Sunlight <70k Lux, Sunlight
Weight 50g 52g 5g
Input Voltage 5(+/-10%)V 4.5V-6V 5V
Photobiological Safety PASS PASS PASS


Useful Links:

How to make the TFMINI rangefinder talk I2C

Sample Coding of TF-Mini LiDAR

Replacement Cable For TF Mini Micro Lidar Distance Sensor

Package Includes :

1 x TF Mini LiDAR Distance sensor.

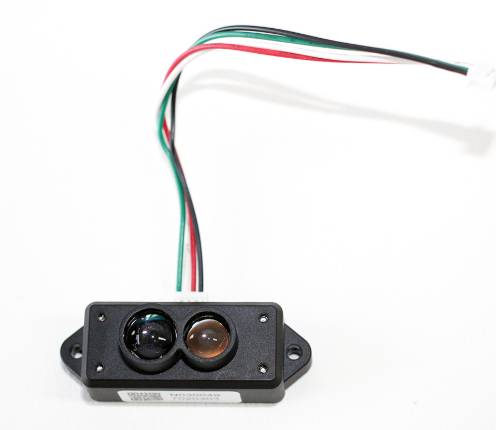

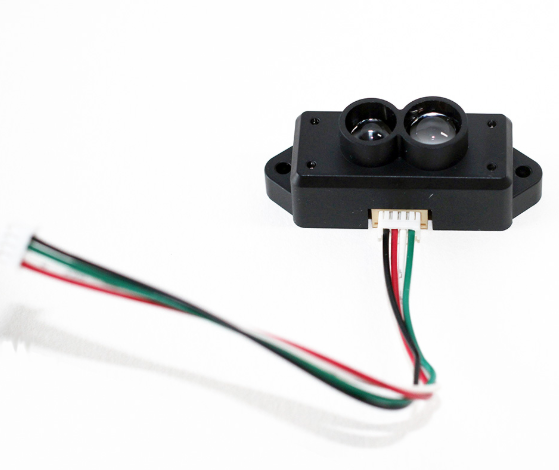

1 x Extension cable.
