SpectraSymbol Flex Sensor 4.5″ Bend Sensor for Hand Gesture Recognition


      Ask for latest offers/availability : https://bit.ly/35gCt59

  1. Angle Displacement Measurement
  2. Bends and Flexes physically with motion device
  3. Simple Construction

943.00 1,578.00

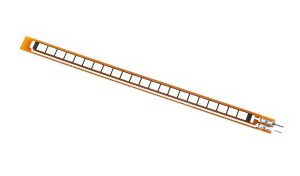

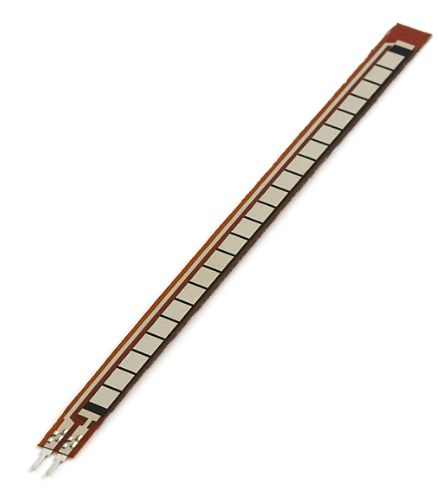

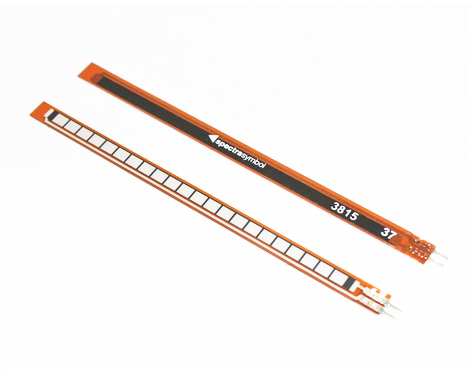

A SpectraSymbol Flex Sensor 4.5″ Bend Sensor for Hand Gesture Recognition is a simple resistive sensor which is 4.5″ in length yet a powerful sensor to sense the flexibility. As the sensor is flexed, the resistance across the sensor increases. The resistance of the flex sensor changes when the metal pads are on the outside of the bend (the text on the inside of bend). The connector is 0.1″ spaced and bread board friendly. Check the datasheet for full specifications.

The flex sensor is a bend detecting sensor which has got numerous applications in robotics, medical and haptic technology. The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller.
Note: The base of the sensor is sensitive to bending and may get damaged. Make sure that you bend only the sensing area.

Flex Sensor 4.5"

Flex Sensor 4.5″


Applications:
  1. Angle Displacement Measurement
  2. Bends and Flexes physically with the motion device
  3. Possible Uses
  4. Robotics
  5. Gaming (Virtual Motion)
  6. Medical Devices
  7. Computer Peripherals
  8. Musical Instruments
  9. Physical Therapy

Features:

  1. Angle Displacement Measurement
  2. Bends and Flexes physically with motion device
  3. Simple Construction

Package Includes:

1 x SpectraSymbol Flex Sensor 4.5″ Bend Sensor for Hand Gesture Recognition
