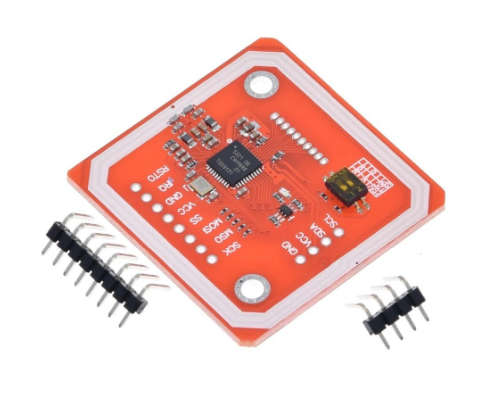

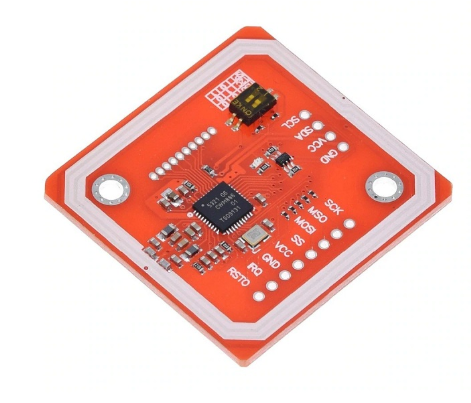

PN532 NFC RFID Read / Write Module V3 Kit


      Ask for latest offers/availability : https://bit.ly/3azPB6m

  1. Module Size: 42.7mm x 40.4mm x 4mm
  2. Easy to change mode: with a small SMD toggle Switch, it becomes very easy to change among IIC, SPI and HSU modes
  3. Longer distance: the reading distance becomes 5~7cm, compared with 4~6 cm of last version
  4. Built in PCB Antenna, with 5cm~7cm communication distance
  5. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  6. Work as RFID reader/writer
  7. Work as 1443-A card or a virtual card

699.00 1,199.00

The PN532 is a highly integrated transmission module for contactless communication at 13.56 MHz including microcontroller functionality based on an 80C51 core with 40 Kbytes of ROM and 1 Kbytes of RAM. The PN532 combines a modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz with an easy-to-use firmware for the different supported modes and the required host controller interfaces.

It works as RFID reader/writer,1443-A card or a virtual card and also supports NFC with Android phone. It is also compatible with Arduino.


Features:

  1. Support II2, SPI and HSU (High-Speed UART)
  2. I2C / UART: 3.3V ~ 24V TTL
  3. SPI: 3.3V TTL with 100-ohm resistors in series
  4. Communication distance: 5cm~7cm
  5. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  6. Work in NFC Mode or RFID reader/writer Mode
  7. RFID reader/writer supports:
  8. Plug and play, compatible
  9. Built-in PCB Antenna, with 4cm~6cm communication distance
  10. On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
  11. Work as an RFID reader/writer
  12. Work as a 1443-A card or a virtual card
  13. Exchange data with other NFC devices such as a smartphone

Useful Links:

Quick Start Guide


Package Includes:

1 x PN532 NFC RFID Wireless Module V3
