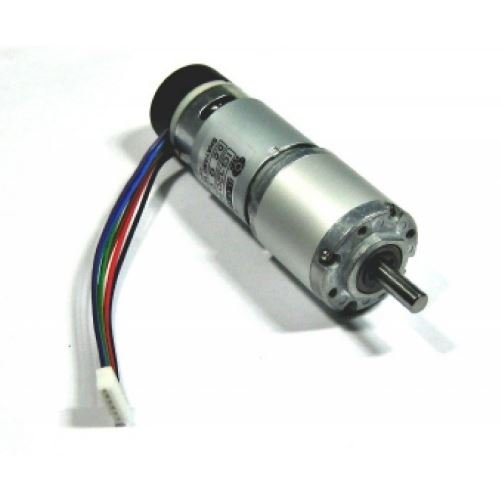

Planetary DC Geared Motor 430 RPM 11N-cm 12V IG32E-14K


  Ask for Latest offer / Availability :  https://bit.ly/3DAX986

  1. Brand: Cytron
  2. Voltage: 12VDC
  3. Rated Torque: ~1.122 kg.cm (110 mN.m)
  4. Rated Speed: 430 RPM
  5. Rated Power: 7 W
  6. Gear ratio: 14:1
  7. Encoder Output: 98 PPR
  8. Gear Material: Metal

2,826.00 4,900.00 incl. GST

The planetary geared motor is always well known for its low backlash and higher efficiency characteristic to meet your higher expectation. The Planetary DC Geared Motor 430 RPM 11N-cm 12V IG32E-14K is imported from an established Taiwanese motor manufacturing company which is well known for its quality and durability.

As these Epicyclic Gear Train motors are very popular amongst our Robotics designer. So we must ensure them for the quality and performance of these motors. For that purpose when we receive these Planetary DC Geared Motor at our  warehouse, we get them out and start testing each motor in our lab for the extreme pushable limits they can withstand.

This is 12V DC motor which has a gearbox of 32mm diameter. The planetary type gearbox of this motor has 14:1 gearhead which produces 430 RPM with the torque value of around 11 N-cm.

We highly suggest you this motor for the general purpose automation projects. It comes with 7PPR(Pulse per Revolution) single channel output encoder feedback to provide you real-time feedback of rotating position.

We have 12V and 24V DC Planetary geared motors with RPM range from 10 to 1700 with the torque capacity of more than 20 kg-cm, do not forget to check them out.


Features :

  1. Brushed permanent magnet DC motor
  2. Variable speed and reversible
  3. Planetary Gear Box

Package Includes :

1 x IG32E-14K Planetary 12V  DC Geared Motor 430 RPM 11N-CM
