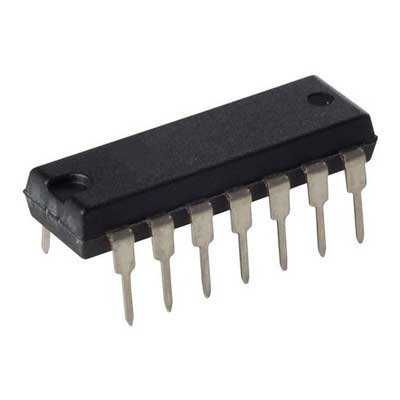

PIC16F88 – Flash 8-pin 1kb 20MHz Microcontroller.
Package includes :
1 x PIC16F88 Microcontroller
-2%
Microcontrollers
PIC16F88 Microcontroller
- Special Microcontroller Features
- 100,000 erase/write cycles Enhanced Flash program memory typical
- 1,000,000 typical erase/write cycles EEPROM data memory typical
- Low-Voltage Programming
- In-circuit Debugging via two pins
- Programmable period from 1 ms to 268s
- Wide operating voltage range: 2.0V to 5.5V
₹162.00 ₹166.00
Peripheral Features
10-bit, 7-channel Analog-to-Digital Converter
Synchronous Serial Port (SSP) with SPI and I²C
RS232 operaton using internal oscillator (no external crystal required)
Programmable on-chip vvoltage reference
Oscillators
Three Crysal modes: LP, XT, HS (up to 20 MHz)
Two External RC modes
ECIO (up to 20 MHz)
8 user-selectable frequencies
