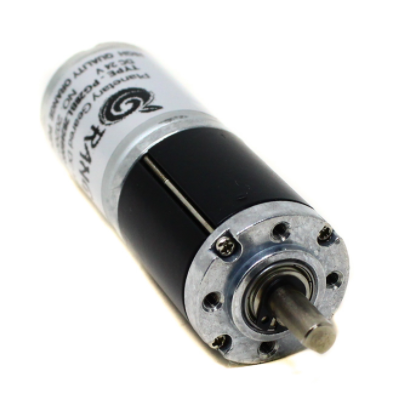

Orange Planetary Gear DC Motor 24V 11RPM 225.63 N-cm PG28BL-462K

  Ask for Latest offer / Availability : https://bit.ly/33PMJlN

  1. Model: PG28BL-462K
  2. Operating Voltage: 24V DC
  3. Rated Torque: 225.63 N-cm
  4. Rated Speed: 11 RPM
  5. Rated Current: 1.49 A
  6. Rated Power: 35.68W
  7. Gear Ratio: 264 : 1

2,671.00 3,499.00 incl. GST

Orange Planetary Gear DC Motor has the highest continuous and peak torque capability of any gearbox type. They also feature a very compact, low-weight design in their Class.

As these Epicyclic Gear Train motors are very popular amongst our Robotics designer. So we must ensure them for the quality and performance of these motors. For that purpose when we receive these Planetary DC Geared Motor to our warehouse at prayogindia.in,we get them out and start testing each motor in our lab for the extreme pushable limits they can withstand.

This is a 24V DC planetary motor which has a gearbox of 28 mm diameter. The planetary type gearbox of this motor has a 462: 1 reduction ratio which produces 11 RPM with the torque value of around 225.63 Ncm

We have 12V and 24V DC Planetary geared motors with RPM range from 10 to 1700 with the torque capacity of more than 200 N-cm, do not forget to check them out

Compatible Motor Bracket: EasyMech Universal Bracket For  Planetary DC Geared Motor (Bend)

Features :

  1. Brushed permanent magnet DC motor
  2. Variable speed and reversible
  3. Planetary Gear Box
  4. Standard brush life of 2000+ hours (varies by application)

Package Includes :

1 x Orange Planetary Gear DC Motor 24V 11RPM 225.63 N-cm PG28BL-462K

1 x 6-pin connecting Cable
