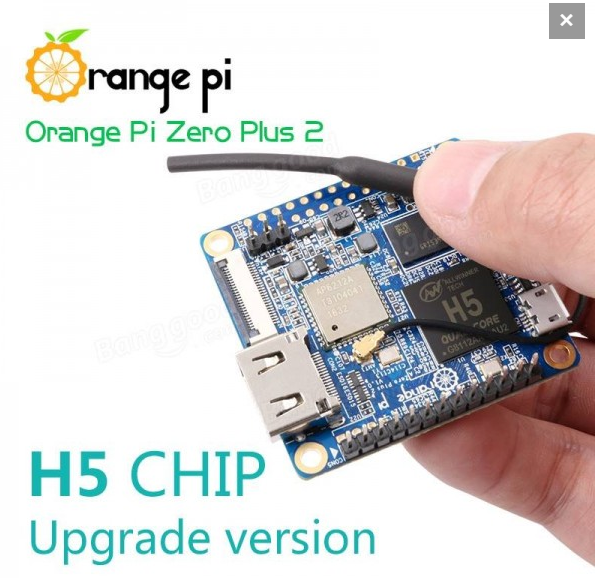

What’s Orange Pi Zero Plus2？
It’s an open-source single-board computer. It can run Android 5.1(H5 version) , Ubuntu, Debian, Raspbian Image, it uses the AllWinner H5 SoC, and has 512MB DDR3 SDRAM.
What can I do with Orange Pi Zero Plus2?
Build…
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi Zero Plus2 is open source
Who’s it for?
Orange Pi Zero Plus2 is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification |
||
| CPU | H5: Quad-core Cortex-A53
H3:Quad-core Cortex-A7 |
|
| GPU | H5: Mali450 GPU H3: Mali400MP2 GPU |
|
| Memory (SDRAM) | 512MB DDR3 (shared with GPU) | |
| Onboard Storage | TF card (Max. 32GB) /eMMC flash(8GB) | |
| Onboard WIFI | AP6212, IEEE 802.11 b/g/n,BT4.2 | |
| Video Input | A CSI input connector Camera
Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video capture solution up to 1080p@30fps |
|
| Video Outputs | Supports HDMI output with HDCP
Supports HDMI CEC Supports HDMI 30 function |
|
| Power Source | USB OTG can supply power | |
| GPIO(1×3) pin | UART, ground. | |
| Buttons | Power Button | |
| Low-level peripherals | 26 Pins Header,compatible with Raspberry Pi B+
13 Pins Header,with 2x USB, IR pin, AUDIO(MIC, AV) |
|
| LED | Power led & Status led | |
| Supported OS | Android, Ubuntu, Debian, Raspbian Image | |
Interface definition |
||
| Product size | 46 mm × 48mm | |
| Weight | 36g | |
| Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited | ||
