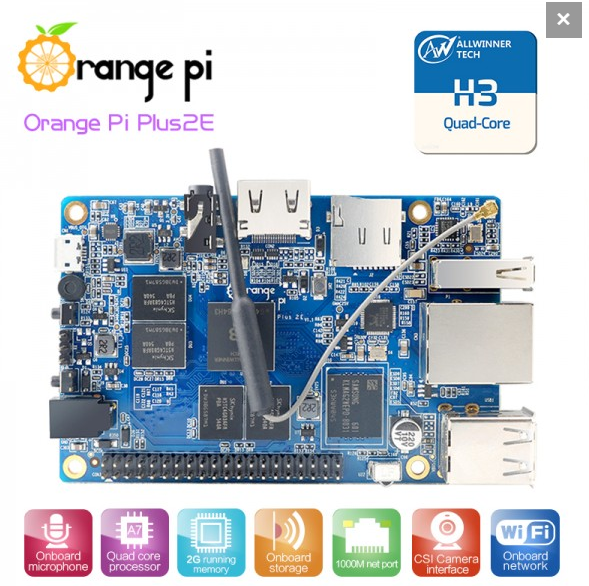

Orange Pi Plus2E (16GB EMMC / 2GB RAM / WiFi)


Ask For Availability :- https://bit.ly/3983t8a

Orange Pi Plus2E (16GB EMMC/ 2GB RAM / WiFi) It’s an open-source single-board computer. It can run Android 4.4 , Ubuntu, Debian, Rasberry Pi Image, it uses the AllWinner H3 SoC, and has 2GB DDR3 SDRAM

4,470.00 6,500.00

Orange Pi Plus2E (16GB EMMC/ 2GB RAM / WiFi)

It’s an open-source single-board computer. It can run Android 4.4 , Ubuntu, Debian, Rasberry Pi Image, it uses the AllWinner H3 SoC, and has 2GB DDR3 SDRAM

What can I do with Orange Pi Plus 2E?

Build…

  • A computer
  • A wireless server
  • Games
  • Music and sounds
  • HD video
  • A speaker
  • Android
  • Scratch
  • Pretty much anything else, because Orange Pi Plus 2E is open source



Who’s it for?

Orange Pi Plus 2E is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.





Hardware specification

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU ·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM) 2GB DDR3 (shared with GPU)
Onboard Storage TF card (Max. 64GB) / MMC card slot
16GB EMMC Flash
Onboard Network 10/100/1000M Ethernet RJ45
Onboard WIFI Realtek RTL8189ETV, IEEE 802.11 b/g/n

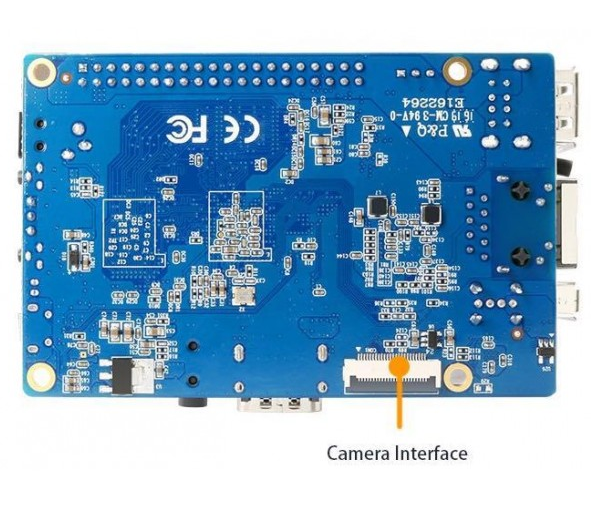

Video Input A CSI input connector Camera:

Supports 8-bit YUV422 CMOS sensor interface

Supports CCIR656 protocol for NTSC and PAL

Supports SM pixel camera sensor

Supports video capture solution up to 1080p@30fps

Audio Input MIC
Video Outputs Supports HDMI output with HDCP

Supports HDMI CEC

Supports HDMI 30 function

Integrated CVBS

Supports simultaneous output of HDMI and CVBS

Audio Output 3.5 mm Jack and HDMI
Power Source DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports Three USB 2.0 HOST, one USB 2.0 OTG
Buttons Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)
Low-level peripherals 40 Pins Header,compatible with Raspberry Pi B+



GPIO(1×3) pin UART, ground.
LED Power led & Status led
Other IR input
Supported OS Android, Ubuntu, Debian, Rasberry Pi Image

Interface definition

Product size 108mm × 67mm
Weight 83g
