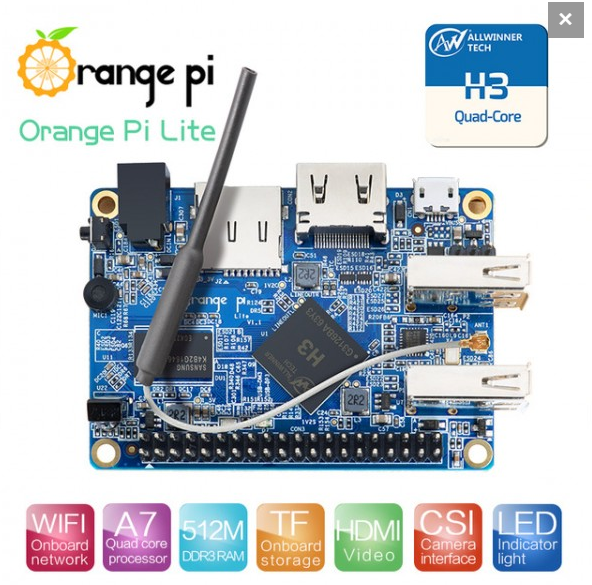

What’s Orange Pi Lite？
It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 512MB DDR3 SDRAM.
What can I do with Orange Pi Lite?
You can use it to build…
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi is open source
Who’s it for?
Orange Pi Lite is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
|
| CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU |
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0 |
| Memory (SDRAM) |
512MB DDR3 (shared with GPU) |
| Onboard Storage |
TF card (Max. 64GB) / MMC card slot |
| Wifi Antenna |
Yes |
| Video Input |
A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps |
| Audio Input |
MIC |
| Video Outputs |
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function |
| Audio Output |
HDMI |
| Power Source |
DC input, USB OTG input don’t supply power |
| USB 2.0 Ports |
Two USB 2.0 HOST, one USB 2.0 OTG |
| Buttons |
Power button |
| Low-level peripherals |
40 Pins Header,compatible with Raspberry Pi B+
|
| GPIO(1×3) pin |
UART, ground. |
| LED |
Power led & Status led |
| Key |
POWER |
| Supported OS |
Android Lubuntu, Debian, Rasberry Pi Image |
Interface definition
|
| Product size |
69mm × 48mm |
| Weight |
60g |
