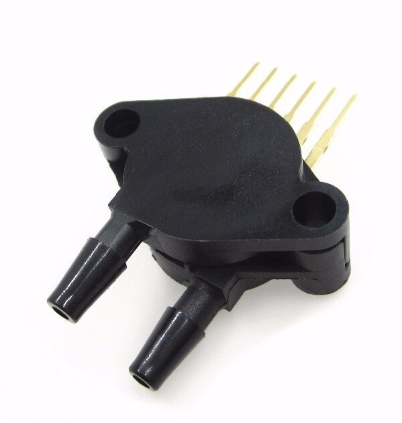

MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor Module


      Ask for latest offers/availability : https://bit.ly/3eVkBBh

  1. Supply voltage range from 4.75VDC to 5.25VDC.
  2. Temperature compensated over -40°C to 125°C.
  3. Pressure range from 0KPa to 10KPa.
  4. The sensitivity of 450mV/kPa.

999.00 1,895.00 incl. GST

MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor module is a dual port, an integrated silicon pressure sensor in 6 pin SIP package. This piezoresistive transducer is state of the art monolithic silicon pressure sensor; designed for a wide range of applications.

It is ideally suited for a microprocessor; and microcontroller-based system. This transducer combines advanced micromachining techniques; thin-film metallization, and bipolar processing to provide an accurate; high-level analog output signal that is proportional to applied pressure. The axial port has been modified to accommodate industrial grade tubing.

Prayog India.in have various kinds of Pressure sensors; for more pressure sensors.


Features :

  1. On-chip signal conditioned, temperature compensated and calibrated.
  2. Differential configuration.
  3. 5.0% maximum error over 0°C to 85°C.
  4. Durable epoxy unibody.
  5. Temperature compensated over -40°C to 125°C.
  6. Patented silicon shear stress-strain gauge.
  7. Pressure range from 0KPa to 10KPa.
  8. Supply voltage range from 4.75VDC to 5.25VDC.
  9. The sensitivity of 450mV/kPa.
  10. Response time of 1ms.
  11. Mounting hole diameter: M4 x 11 (height).

Applications :

  1. Sensing & Instrumentation.
  2. Consumer Electronics.
  3. Portable Devices.
  4. Automation & Process Control.
  5. Medical

Package Includes :

1 x MPX5010DP Pressure Sensor 0-10KPa Transmitter Sensor.
