LoRa Shield for Arduino V95


      Ask for latest offers/availability : https://bit.ly/2WvBoTh

  1. Compatible with 3.3v or 5v I/O Arduino Board.
  2. Frequency Band: 915MHz/868 MHZ/433 MHZ (Pre-configure in a factory)
  3. Low power consumption
  4. Compatible with Arduino Leonardo, Uno, Mega, DUE
  5. External Antenna via I-Pex connector

2,499.00 3,999.00

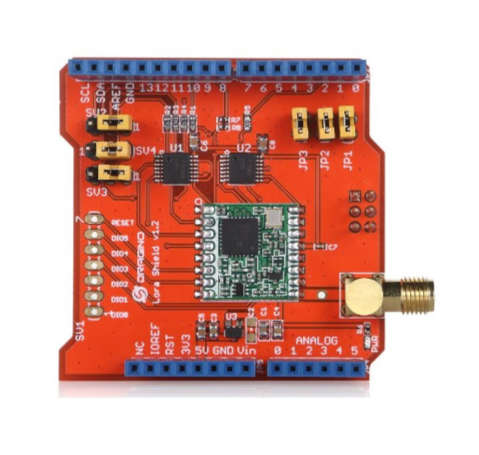

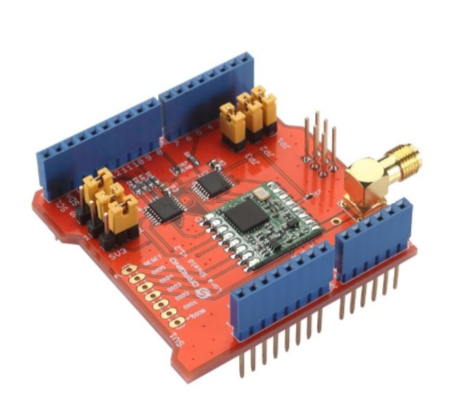

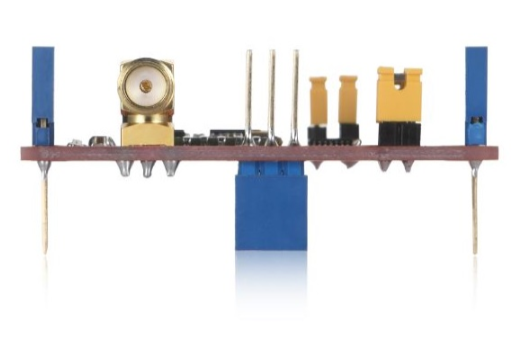

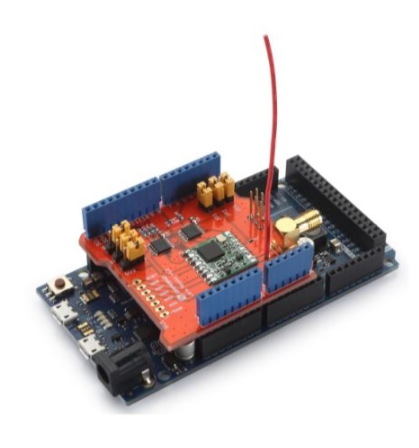

LoRa Shield is a long-range transceiver on an Arduino shield form factor and based on Open source library. The Shield allows the user to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

LoRa Shield is based on Semtech SX1276/SX1278 chip, it targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on.

Using Hope RF’s patented LoRaTM modulation technique the  Dragino Shield featuring LoRa® technology can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness.

LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity, and energy consumption.

These devices also support high performance (G)FSK modes for systems including WMBus, IEEE802.15.4g. The  Dragino Shield featuring LoRa® technology delivers exceptional phase noise, selectivity, receiver linearity and IIP3 for significantly lower current consumption than competing devices.

To buy Arduino Board click on the respective name below,

Arduino UNO
Arduino MEGA


Features :

  1. Compatible with 3.3v or 5v I/O Arduino Board.
  2. Frequency Band: 915MHz/868 MHZ/433 MHZ (Pre-configure in a factory)
  3. Low power consumption
  4. Compatible with Arduino Leonardo, Uno, Mega, DUE
  5. External Antenna via I-Pex connector
  6. Excellent blocking immunity.
  7. Built-in bit synchronizer for clock recovery.
  8. Preamble detection.
  9. 127 dB Dynamic Range RSSI.
  10. Automatic RF Sense and CAD with ultra-fast AFC.
  11. Packet engine up to 256 bytes with CRC.
  12. Built-in temperature sensor and low battery indicator.

Package Includes :

1 x LoRa Shield for Arduino

1 x SMA- Antenna
