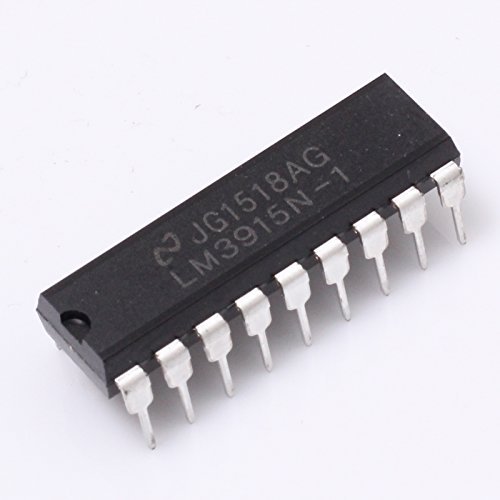

LM3915 – Dot/Bar Display Driver (pack of 3 )


Ask for Latest offer / Availability : https://bit.ly/3p8f13c

  • Provides a Logarithmic 3dB Analog Display from Analog Voltage Input
  • Drives LED’s, LCD’s or Vacuum Flourescents
  • Bar or Dot Display Mode
  • Expandable to 100 Steps
  • Internal Voltage Reference from 1.2V to 12V
  • Operates with single supply of 3V to 25V
  • Inputs operate down to ground
  • Output current programmable from 1 mA to 30 mA
  • Input withstands ±35V without damage or false outputs
  • Outputs are current regulated, open collectors
  • Directly drives TTL or CMOS
  • The internal 10-step divider is floating and can be referenced to a wide range of voltages

550.00 899.00 incl. GST

The LM3915 is a monolithic integrated circuit that senses analog voltage levels and drives ten LEDs, LCDs or vacuum fluorescent displays, providing a logarithmic 3 dB/step analog display. One pin changes the display from a bar graph to a moving dot display. LED current drive is regulated and programmable, eliminating the need for current limiting resistors. The whole display system can operate from a single supply as low as 3V or as high as 25V.



Package includes :

1 x LM3915 – Dot/Bar Display Driver

Category:

Expandable to 100 Steps

Internal Voltage Reference from 1.2V to 12V

Operates with single supply of 3V to 25V

Inputs operate down to ground

Output current programmable from 1 mA to 30 mA

Input withstands ±35V without damage or false outputs
