EasyMech 152mm Aluminium Mecanum wheels (Bush type rollers) RIGHT


  Ask for Latest offer / Availability : https://bit.ly/37uVwLH

  1. Diameter : 152.4 mm(6 inch).
  2. Number of Rollers per wheel : 15.
  3. Number of Plates per wheel : 2.
  4. Body material : Aluminium alloy.

3,769.00 5,499.00 incl. GST

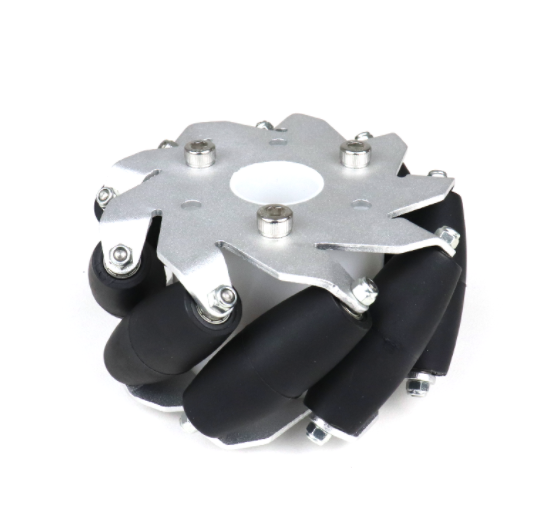

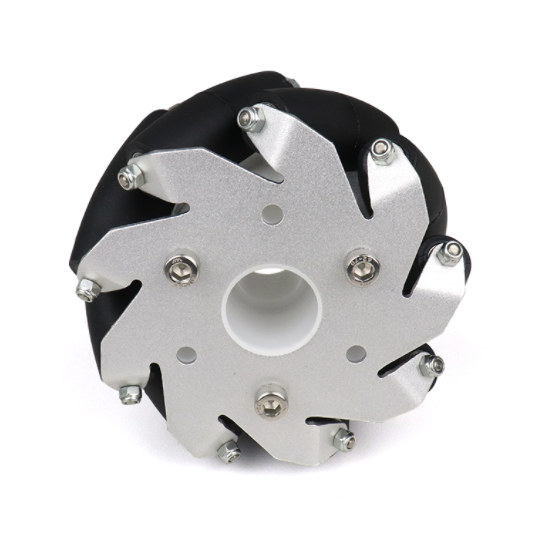

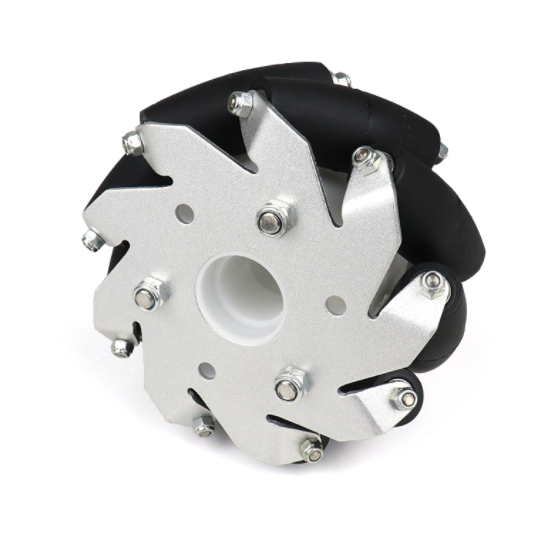

The EasyMech 152mm Aluminium Mecanum wheels (Bush type rollers) allow a robot to achieve omnidirectional movement while supporting large weights. The 6″(152mm)  Mecanum wheel utilize 15 rollers positioned between 2 plates.

The wheel is connected to its own, independent motor and driven independently. Every wheel includes a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane parallel to the axis of rotation of the wheel.

Mecanum wheel using a standard chassis shape and powering each wheel with a different motor, which can be capable of moving in any direction, no need to change the directions the wheels spin. This design enables the wheel to propel your robot forward, backward and directly sideways.


Package Includes :

1 x EasyMech 152mm Aluminium Mecanum wheels (Bush type roller)Right
3 x M5×65 Allen Bolts for coupling -3pcs.
