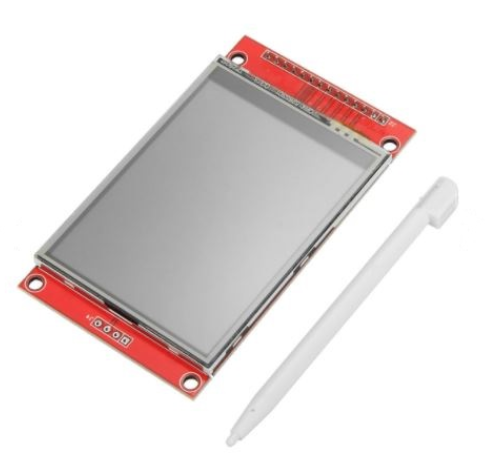

2.8 inch SPI Touch Screen Module TFT Interface 240*320

Ask for Latest offer / Availability : https://bit.ly/2GpgQaG

  1. Touch: Resistive
  2. Display Size: 2.8″
  3. Size: 8.5 x 4.8cm
  4. Input Voltage (V): 3.3 to 5
  5. Driver IC: ILI9341
  6. Color Depth: 262K/65K
  7. Resolution (dots): 240 x 320

1,395.00 1,599.00 incl. GST

This TFT display is big (2.8″ diagonal) bright and colorful! 240×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display.

As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. This display has a controller built into it with RAM buffering so that almost no work is done by the microcontroller.

The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you’ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than the 8-bit mode. In addition, 4 pins are required for the touchscreen (2 digital, 2 analogs).

This 2.8 inch SPI Touch Screen Module is wrapped up into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use with any microcontroller. If you’re going with SPI mode, you can also take advantage of the onboard MicroSD card socket to display images.

For more displays click below,

LED/LCD Display

Features :

  1. It shows the color depth of 262K/65K.
  2. Need at least 4 IOs from your MCU
  3. The display has a wide viewing angle.
  4. Big display with good resolution.

Package Includes :

1 x 2.8-inch SPI Touch Screen Module TFT Interface 240 x 320

1 x Stylus Pen
