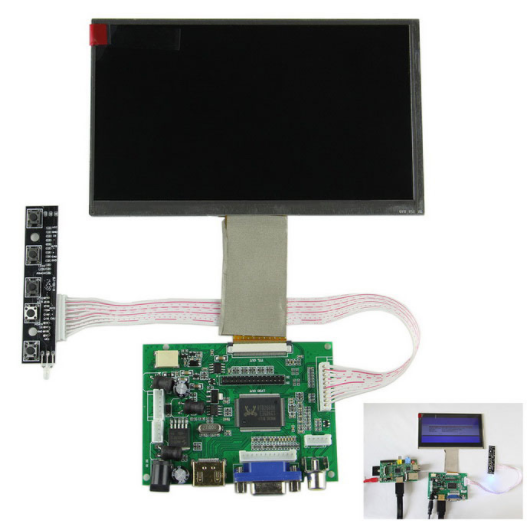

10.1 inch IPS LCD Screen 1280×800 with Driver Board Kit for Raspberry Pi


           Ask for Latest offer / Availability : https://bit.ly/2XXHdd2

  1. Operating voltage: 12V
  2. Current requirement: 1A-2A
  3. Rated power: 6-7W
  4. Signal input: 2 Road AV+VGA
  5. System mode: PAL/NTSC
  6. HDMI input: version HDMI 1.1
  7. VGA input: 1280×800 physical resolution
  8. Physical resolution: 1280 x 800
  9. Brightness: 350 lumens
  10. Panel type: TFT
  11. Interface type: Digital
  12. Number of wiring: 40 PIN LVDS
  13. Backlight: LED

6,999.00 9,999.00 incl. GST

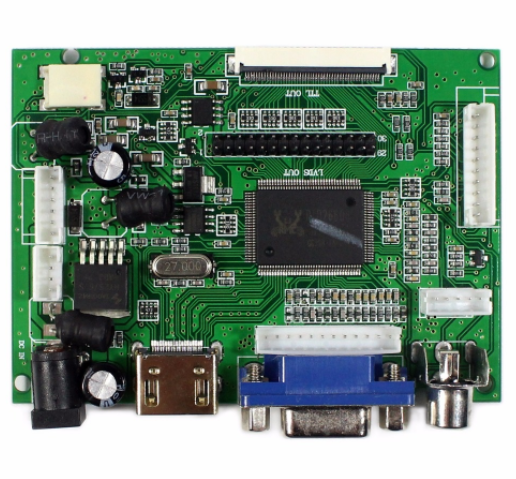

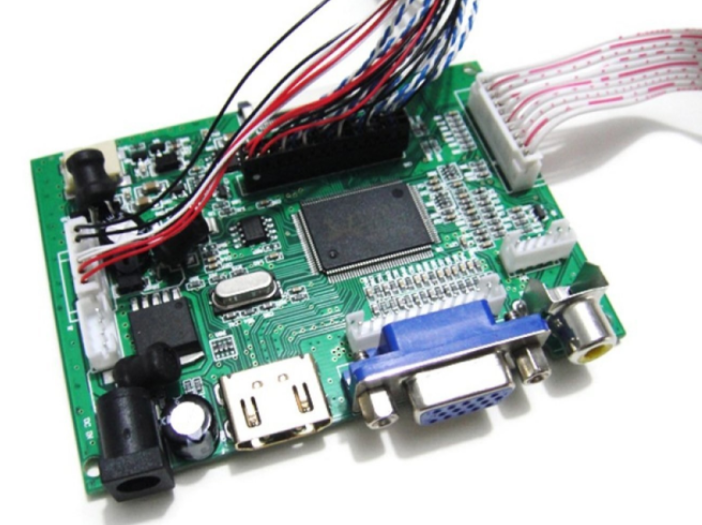

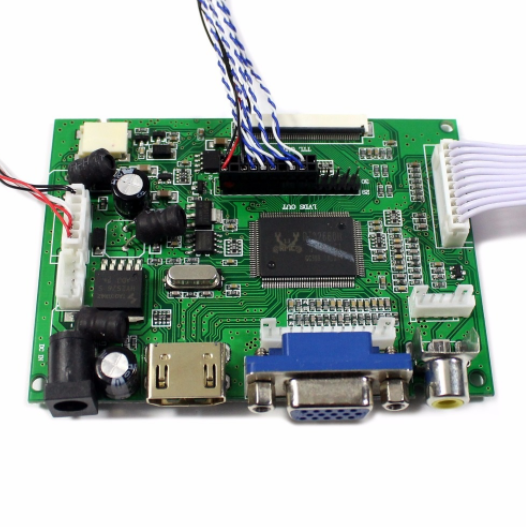

The 10.1 inch IPS LCD Screen 1280×800 with Driver Board Kit for Raspberry Pi is an HD IPS digital LCD screen kit with HDMI+VGA+2AV. Do not reverse the positive and negative of the power supply. The back of the drive plate is marked positive and negative (GND). The driver board must be insulated around so as no conductor or metal conductor can touch the circuit board.

As the wiring is relatively fragile, when testing installation, we must pay attention to protect the cable. Support resolution range can be 640 x 480 —1600 x 1200 arbitrarily!  AV1 video input (link DVD device or front camera) and AV2 video input (automatically switch to camera picture). The 10.1 inch IPS LCD Screen 1280×800 with Driver Board Kit for Raspberry Pi is plug and play function and support the OSD languages: Simplified Chinese, traditional Chinese, English, Japanese, Japanese, Korean, Spanish, French, German, Italian, Portuguese. The control mode is multi-function OSD operation or potential regulation of brightness and color.

Performance characteristics of LCD display using a mature scheme, clearly display the effect of the function setting:

  1. The boot defaults the last storage channel.
  2. Boot, reversing signal, switch to AV2, reversing signal disappear, return to the original channel.
  3. Standby, reversing signal, switching to AV2, reversing the signal vanishing, back to the standby.

Support image over and down, the image 4:3/16:9 display format conversion range: applied to visual dialogue, vehicle computer, instrument, industrial control, medical equipment, portable display equipment and other electronic fields.

Applications:

  1. Mobile DVD
  2. DIgital photo frame
  3. Vehicle-mounted system
  4. Multimedia application
  5. Other audio-visual systems.

Note: This LCD Display is not a touch display. For more Raspberry Pi Displays, check out our category

RASPBERRY PI DISPLAY

Package Includes :

1 x 10.1 inch IPS LCD Screen

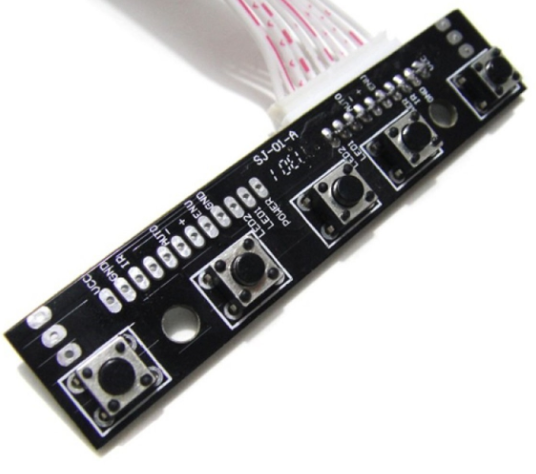

1 x Control button board and a Ribbon cable for control button board
